Standard Slipring




Total 5 Article(s) 1 Page(s)
  • 5
    • zoom in

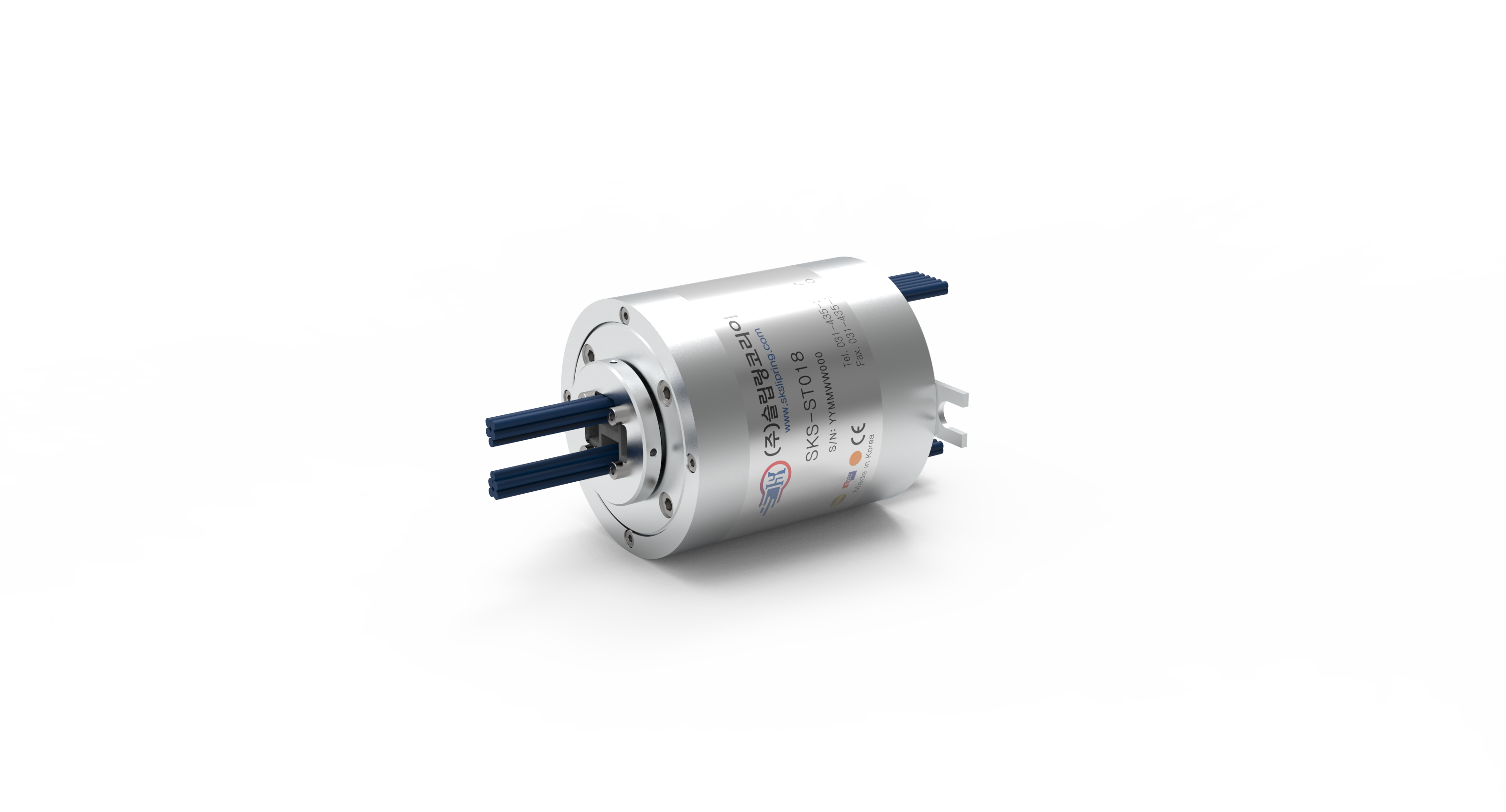

    • SKS-ST000-A000


      Item Specification
      Number of Circuit 12/24/36 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available

      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 210 V/DC, 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net

  • 4
    • zoom in

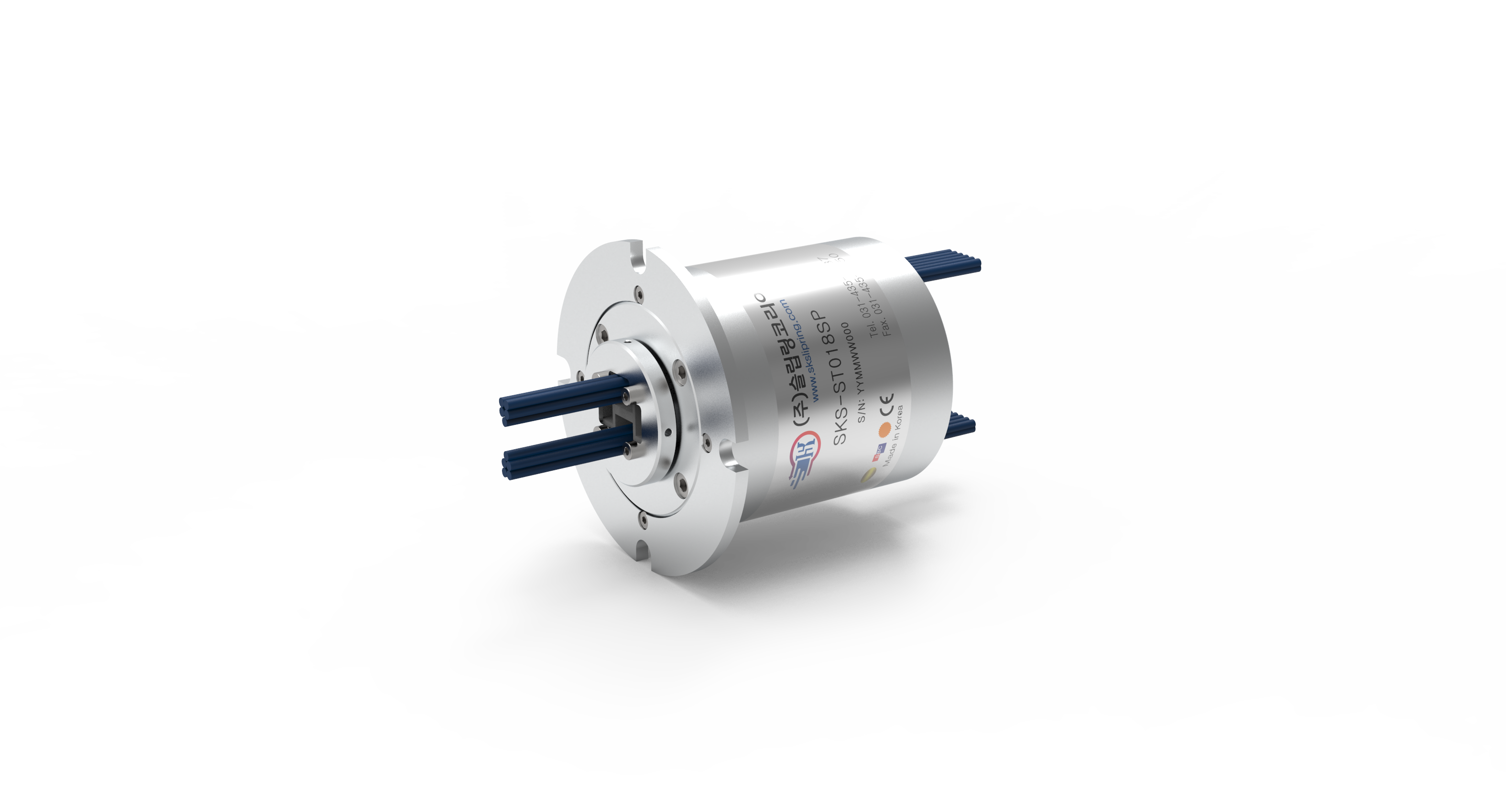

    • SKS-ST000SP-A000 (Flange Type)


      Item Specification
      Number of Circuit 12/24/36 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available

      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 210 V/DC, 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net

  • 3
    • zoom in

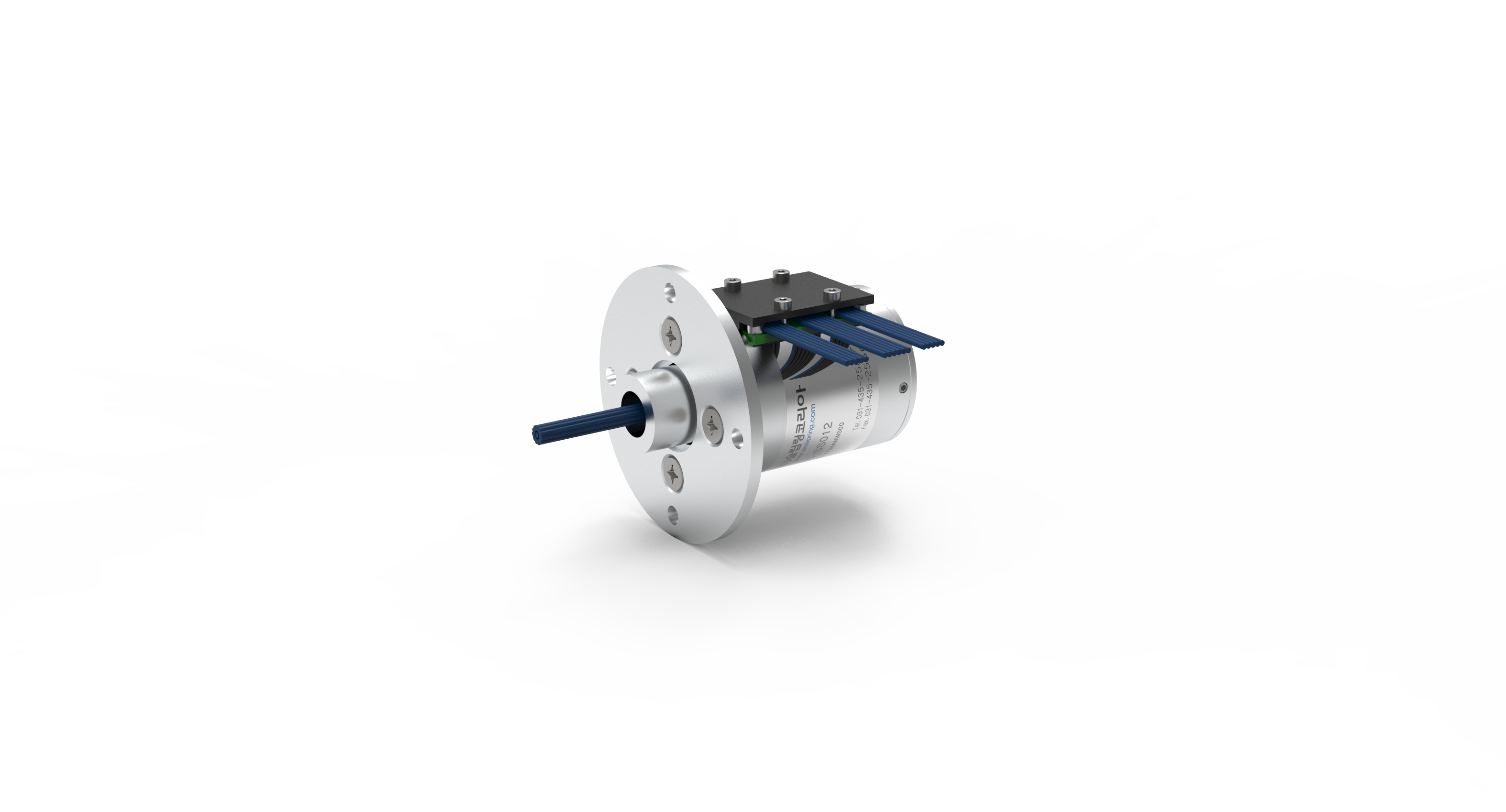

    • SKS - S000-A000


      Item Specification
      Number of Circuit 12/24/32/48/60/72 (~MAX 80) circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available

      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 210 V/DC, 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net

  • 2
    • zoom in

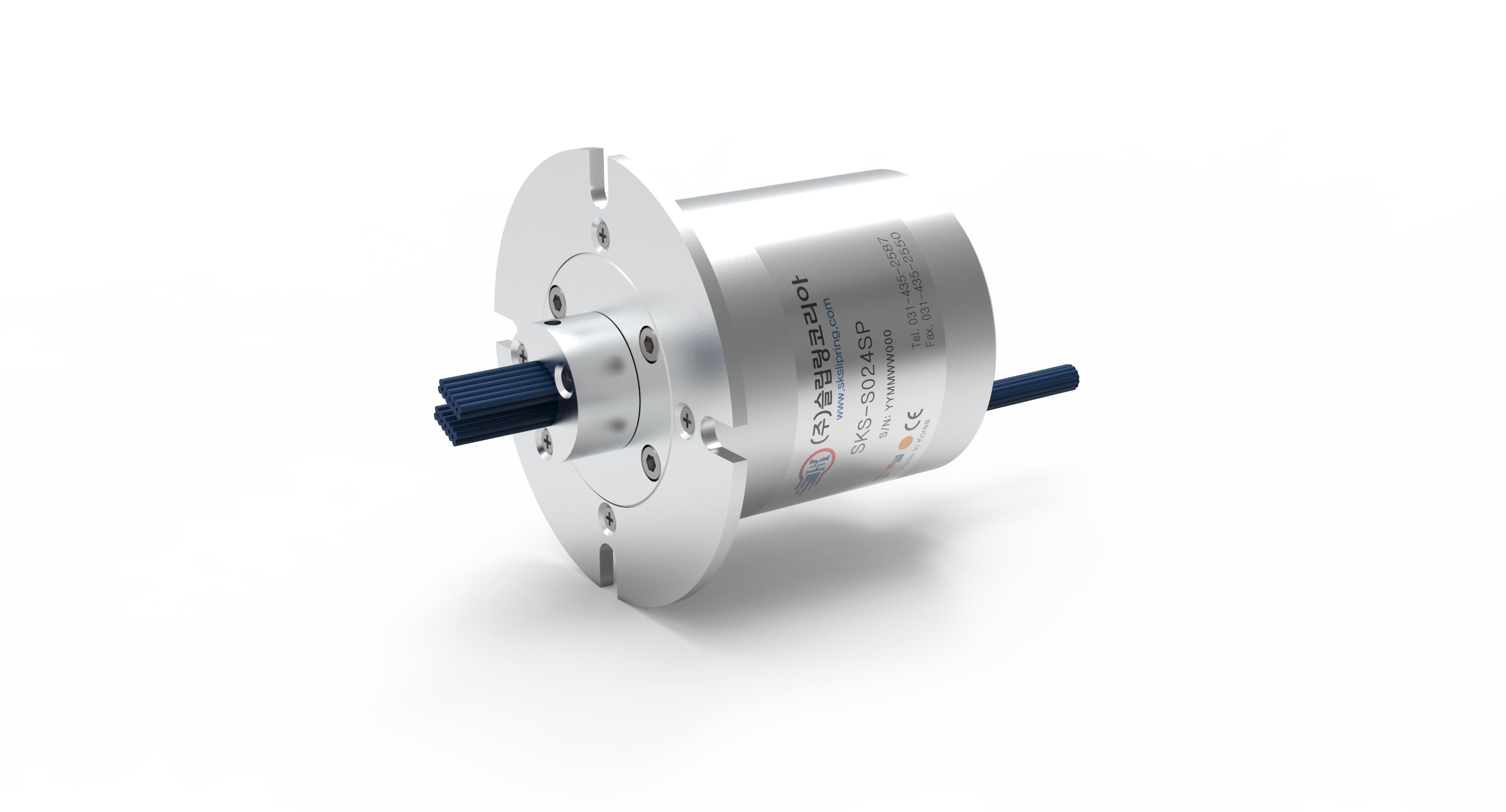

    • SKS - S000SP-A000 (Flange Type)


      Item Specification
      Number of Circuit 12/24/32/48/60/72 (~MAX 80) circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available

      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 210 V/DC, 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net

  • 1
    • zoom in

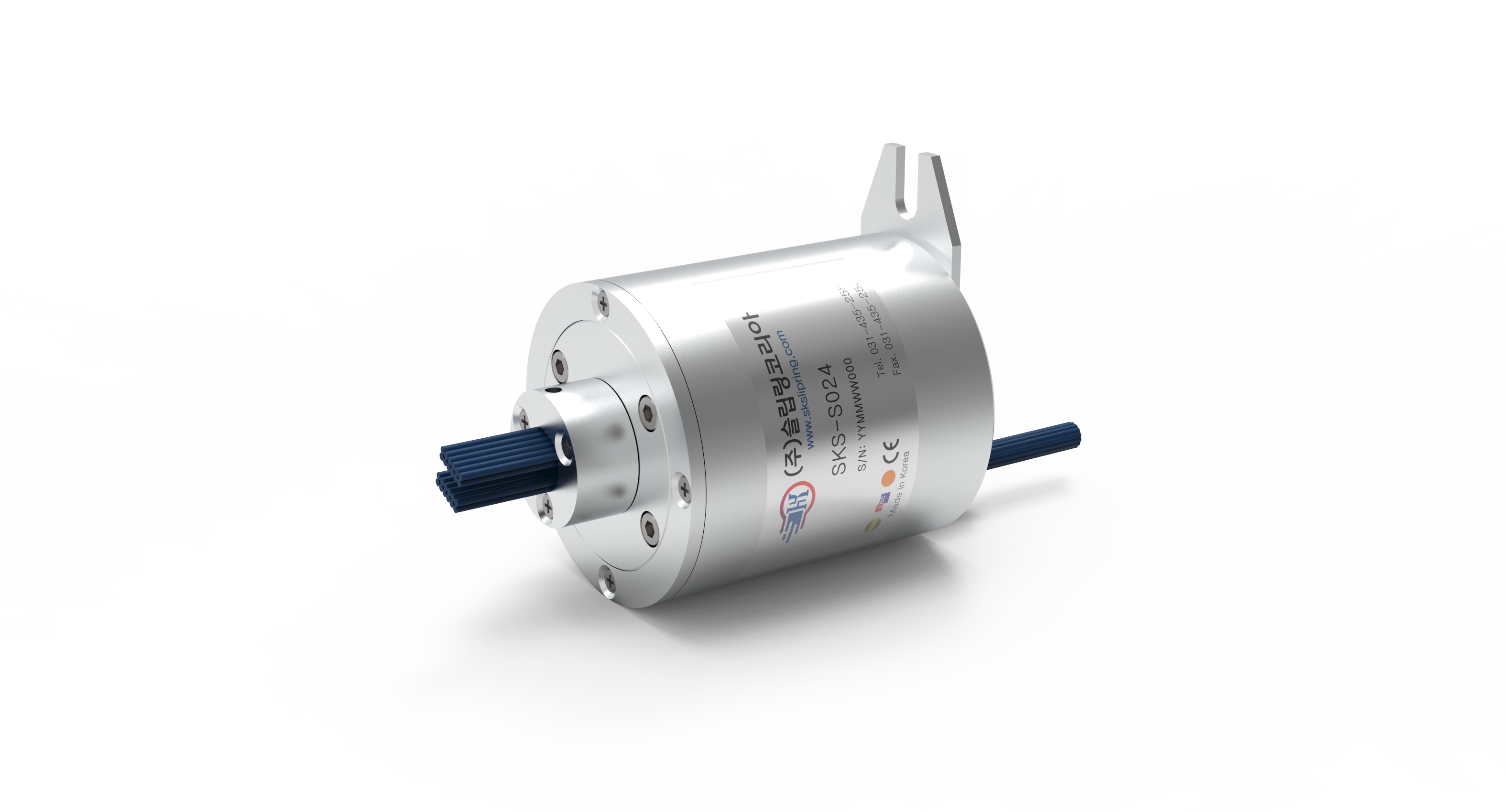

    • SKS - SS000-A000


      Item Specification
      Number of Circuit 12/16 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available

      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 210 V/DC, 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
