Technological Innovation of Slip Ring


Multi Union

Total 7 Article(s) 1 Page(s)
  • 7
    • zoom in

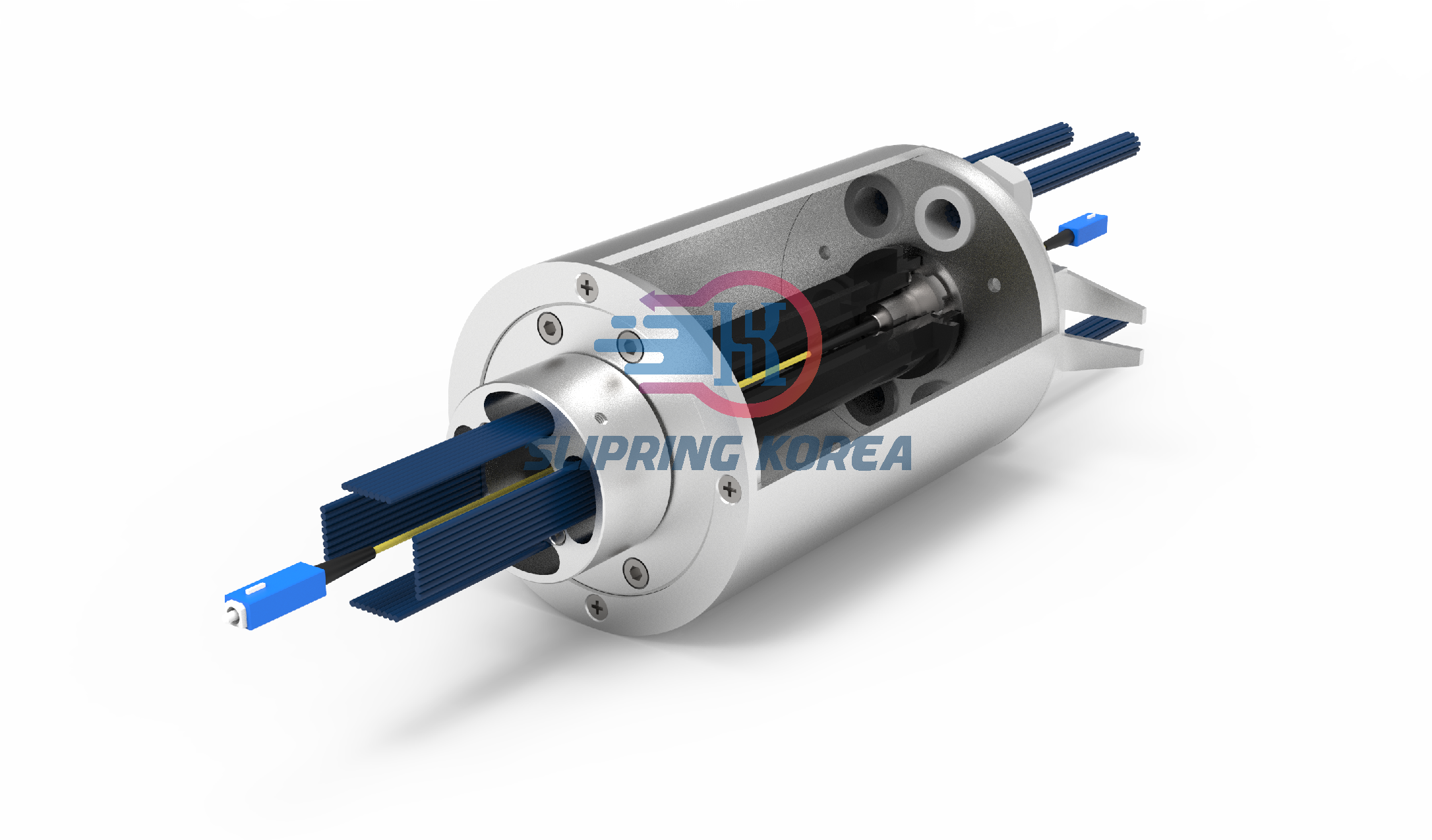

    • SKS-MB0000101SP-OPT(SKS-B000 + SKS-RJ0000 + SKS-OPT01)

      Item Specification
      Electric Number of Circuit

      12/16/24/32/48/60/70/80/100 (~Max 160) circuit

      ※ Change to Flange Type

      Optical Number of Circuit 1 Cor
      Ressure Nu4mber of Circuit 1 circuit
      Operating Speed Max 200 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver

      Lead Size Type

      Optical Cable

      Electric Wire - Teflon insulated

      ※ AWG standard

      2.9mm, 3mm의 Kevlar / PVC

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의

  • 6
    • zoom in
    • SKS-MB000SP-OPT (SLIPRING + Optical Slipring)

      Item Specification
      Electric Number of Circuit

      12/16/24/32/48/60/70/80/100 (~Max 160) circuit

      ※ Change to Flange Type

      Optical Number of Circuit 1 Cor
      Operating Speed Max 200 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available

      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver

      Lead Size Type

      Optical Cable

      Electric Wire - Teflon insulated

      ※ AWG standard

      2.9mm, 3mm의 Kevlar / PVC

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의

  • 5
    • zoom in

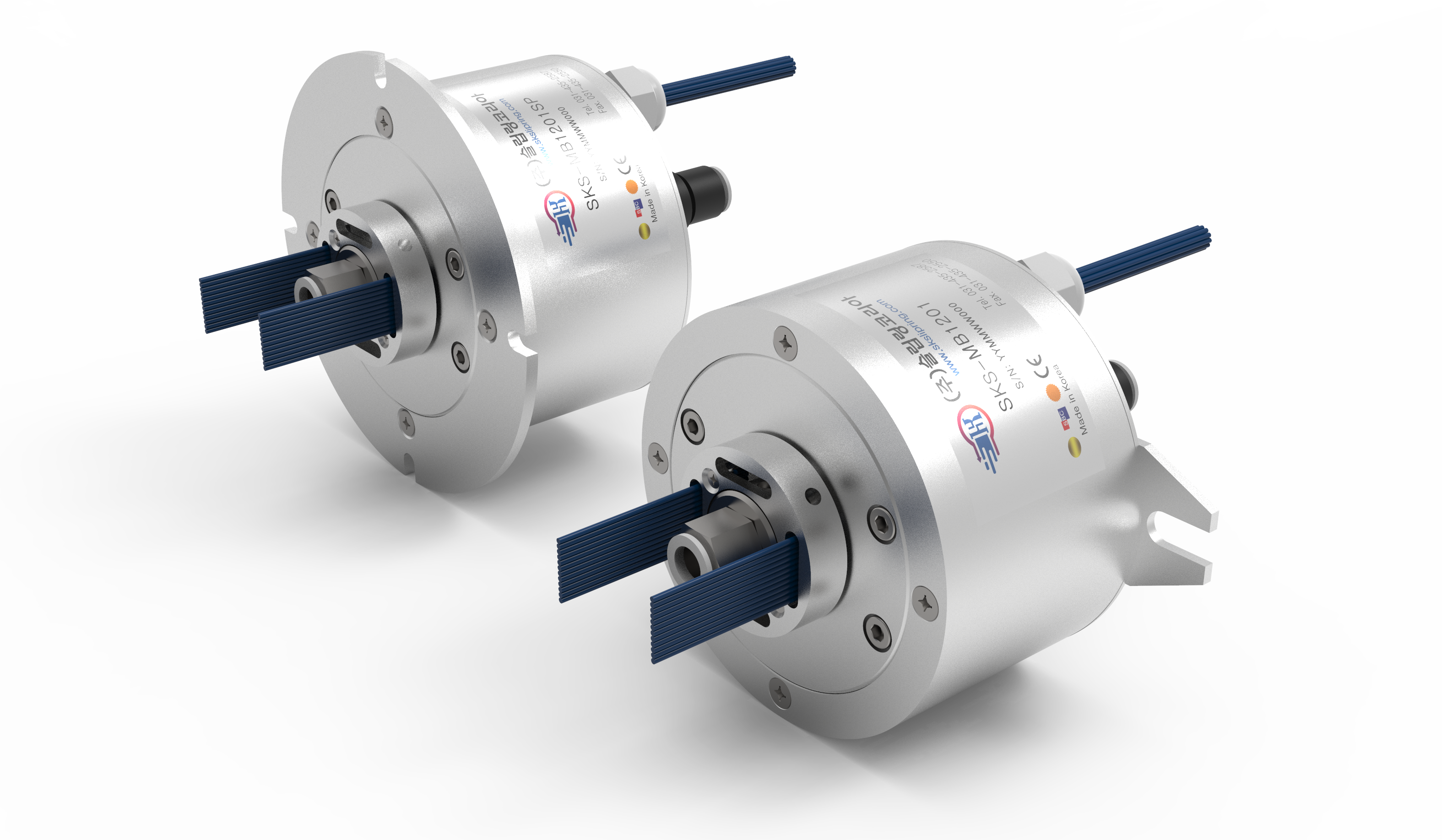

    • SKS-MB0001SP-A000 (SKS-B000 + Rotary Fitting)

      Item Specification
      Electric Number of Circuit

      12/16/24/32/48/60 circuit

      ※ Change to Flange Type

      Ressure Number of Circuit 1 circuit
      Operating Speed Max 200 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Pressure

      AIR : Min 7 Bar ~ Max 20 Bar

      WATER , OIL : Min 7 Bar ~ Max 40 Bar

      Pitting Tap type 1/4, 1/8
      Tunnel Diameter Max ø10
      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의

  • 4
    • zoom in

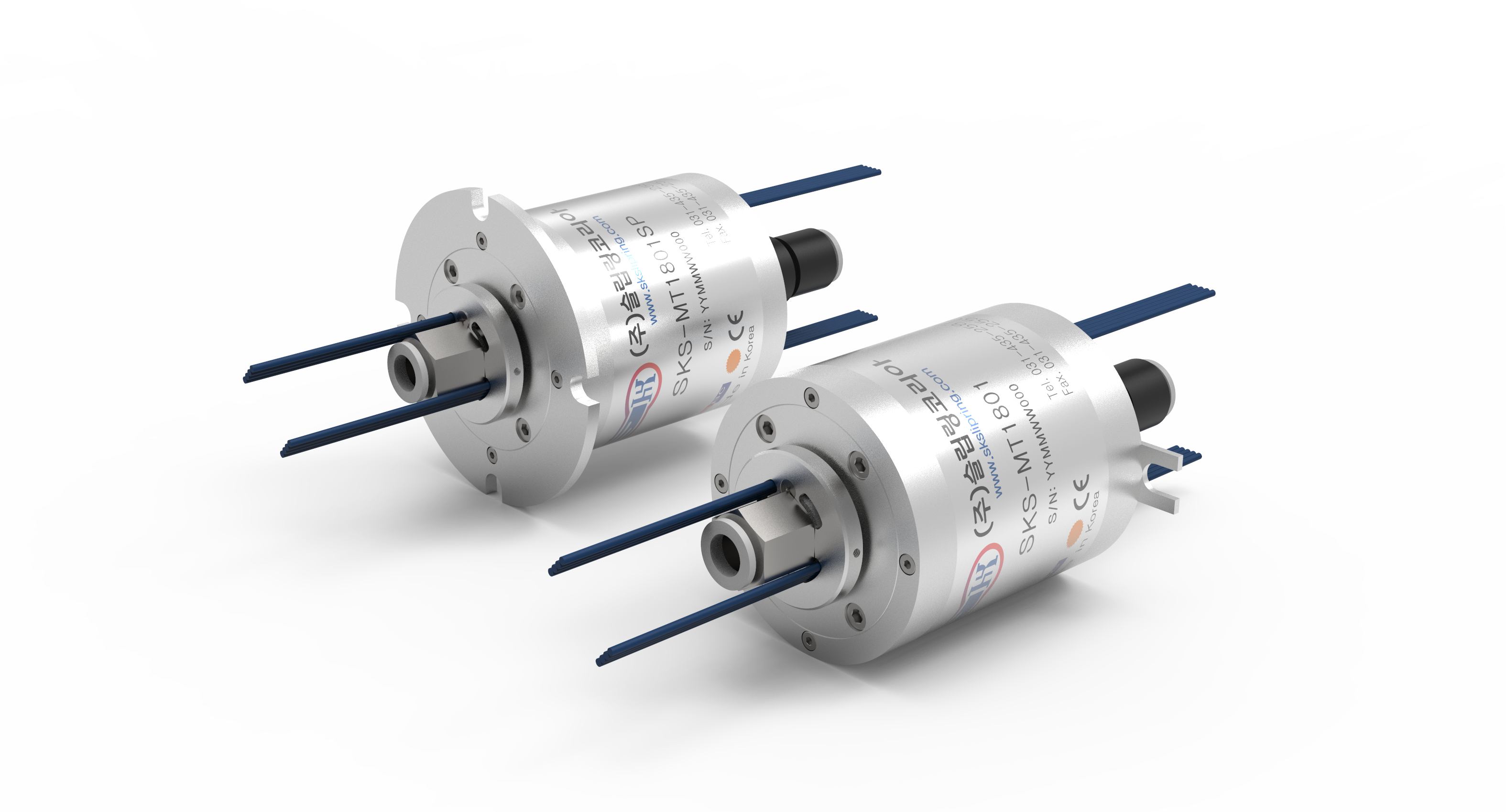

    • SKS-MT0001 (SKS-T000 + Rotary Fitting)

      Item Specification
      Electric Number of Circuit

      6/12/24 circuit

      ※ Change to Flange Type

      Ressure Number of Circuit 1 circuit
      Operating Speed Max 200 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Pressure

      AIR : Min 7 Bar ~ Max 20 Bar

      WATER , OIL : Min 7 Bar ~ Max 40 Bar

      Pitting Tap type 1/8
      Tunnel Diameter Max ø10
      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의

  • 3
    • zoom in

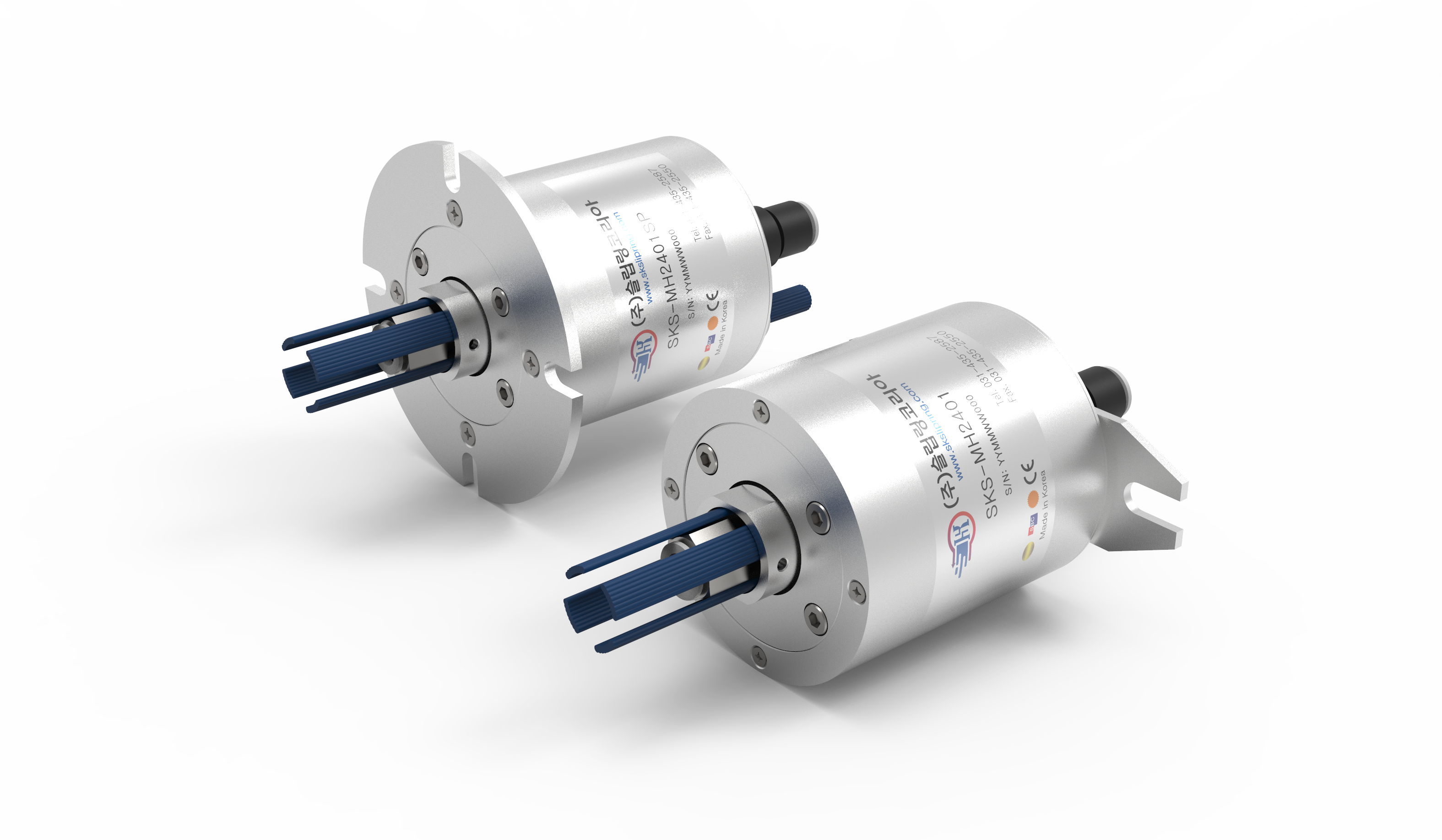

    • SKS-MH0001 / SP (SKS-H000+Rotary Fitting)

      Item Specification
      Electric Number of Circuit

      12/16/24/32/48/60 circuit

      ※ Change to Flange Type

      Ressure Number of Circuit 1 circuit
      Operating Speed Max 200 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Pressure

      AIR : Min 7 Bar ~ Max 20 Bar

      WATER , OIL : Min 7 Bar ~ Max 40 Bar

      Pitting Tap type 1/4, 1/8
      Tunnel Diameter Max ø10
      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의

  • 2
    • zoom in
    • SKS-MC0000 (SKS-C000+SKS-RJ0000)

      Item Specification
      Electric Number of Circuit 6/12/24/36 circuit
      Ressure Number of Circuit 1~12 circuit
      Operating Speed Max 200 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Pressure

      AIR : Min 7 Bar ~ Max 20 Bar

      WATER , OIL : Min 7 Bar ~ Max 40 Bar

      Pitting Tap type Max 1/4
      Tunnel Diameter Max ø10
      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의

  • 1
    • zoom in
    • SKS-MB0000 (SKS-B000+SKS-RJ000)

      Item Specification
      Electric Number of Circuit 12/16/24/32/48/60/70 (~Max 160) circuit
      Ressure Number of Circuit 1~12 circuit
      Operating Speed Max 150 rpm
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable

      Pressure

      AIR : Min 7 Bar ~ Max 20 Bar

      WATER , OIL : Min 7 Bar ~ Max 40 Bar

      Pitting Tap type 1/4, 1/8, 3/8
      Tunnel Diameter Max ø10
      Voltage

      MAX 440 V/AC

      Need an inquiry for using over 300V

      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit

      Contact Material Gold Alloy Type
      Plated Type Ring / Wire  Signal - Gold / Power - Silver
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard

      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication type

      Encoder, CClink, Divice Net, Sensor, RS통신
      ※ Ethernet 으로 사용시 사전문의
