Rotary Joint




Total 3 Article(s) 1 Page(s)
  • 3
    • zoom in

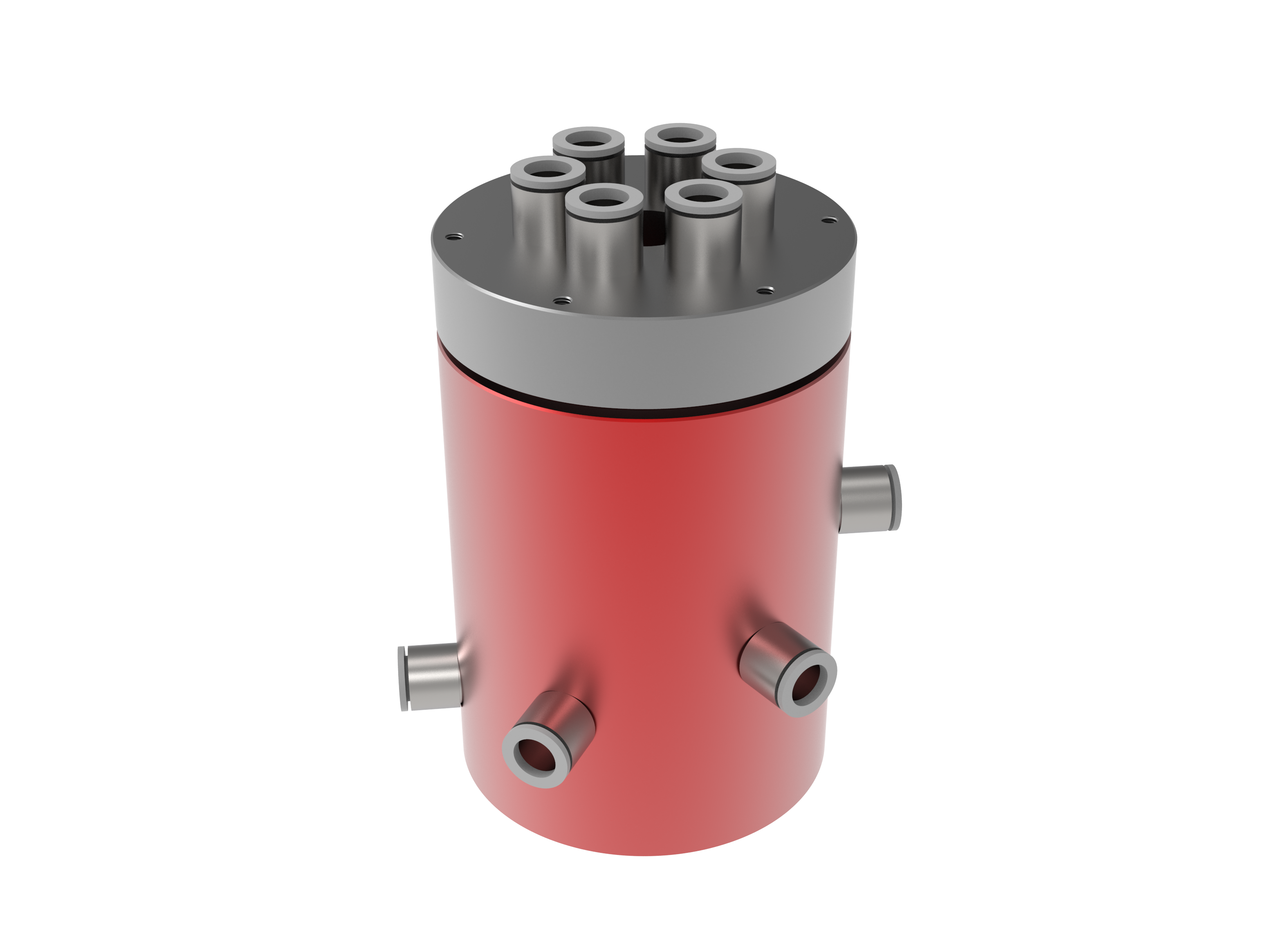

    • SKS-RJ0000 (A TYPE)

      Item Specification
      Pressure Number of Circuit

      1~ 6 circuit

      ※ Can be made for oil water , More than 7 circuit production

      Operating Speed Max 50 ~ 100 rpm
      Pitting Tap type 1/2, 3/8, 1/4, 1/8, M5, M6
      HOSE SIZE Max ø04 ~ ø16
      Tunnel Diameter Max ø02 ~ ø14
      Pressure

      AIR : 7 ~ 20 Bar

      WATER, OIL : Min 7 Bar ~Max 200 Bar

      Min Torque(N/m) Min 0.3 ~ 1.5
  • 2
    • zoom in

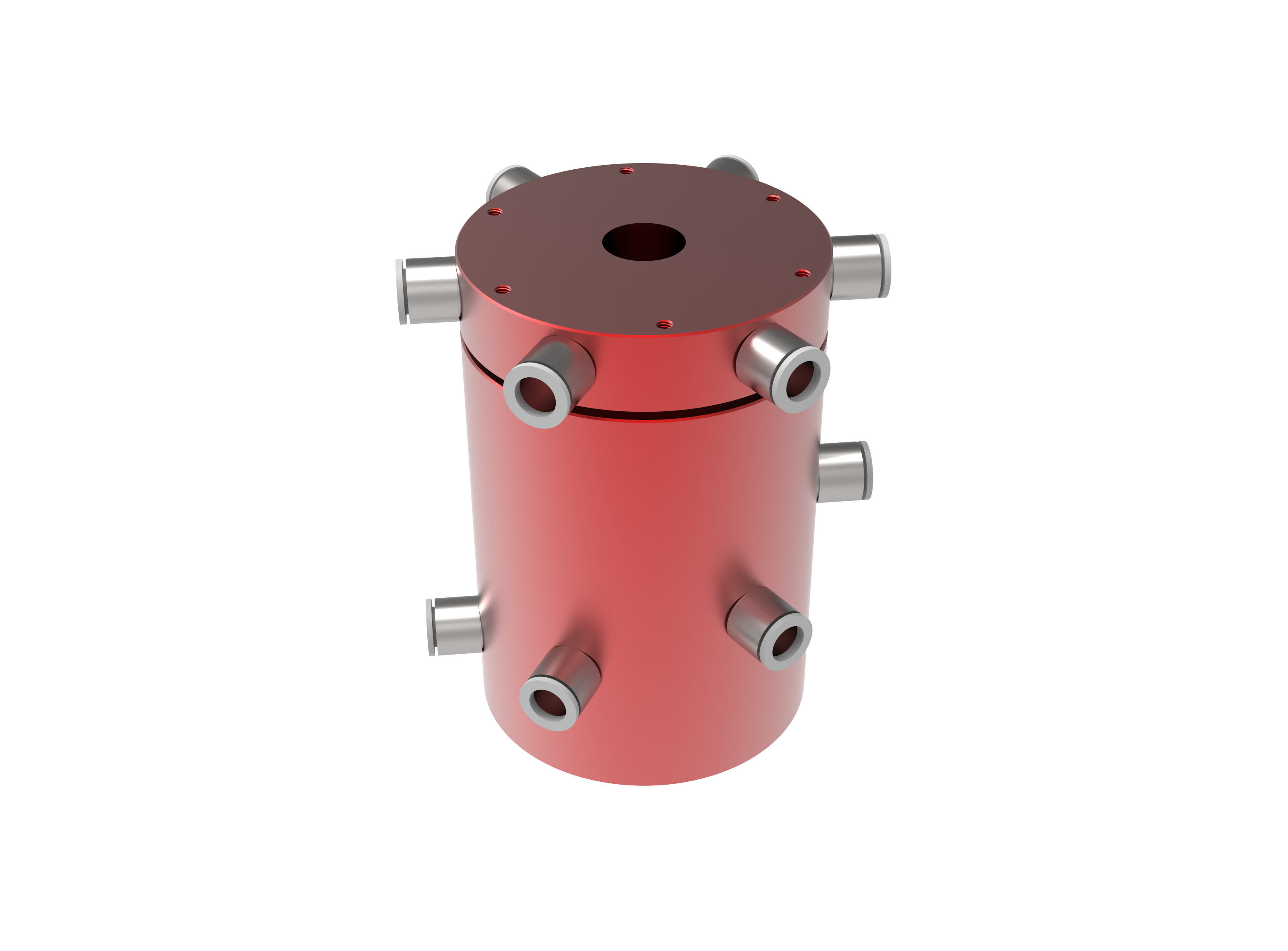

    • SKS-SRJ0000 (B TYPE)

      Item Specification
      Pressure Number of Circuit

      1~ 8 circuit

      ※ Can be made for oil water , More than 7 circuit production

      Operating Speed MAX 50~100 rpm
      Pitting Tap type 1/2, 3/8, 1/4, 1/8, M5, M6
      HOSE Size Max ø04 ~ ø16
      Tunnel Diameter Max ø02 ~ ø14
      Max Pressure

      AIR : Min 7 Bar ~Max 40 Bar

      WATER, OIL : Min 7 Bar ~Max 200 Bar

      Min Torque(N/m) Min 0.3 ~ 1.5
  • 1
    • zoom in

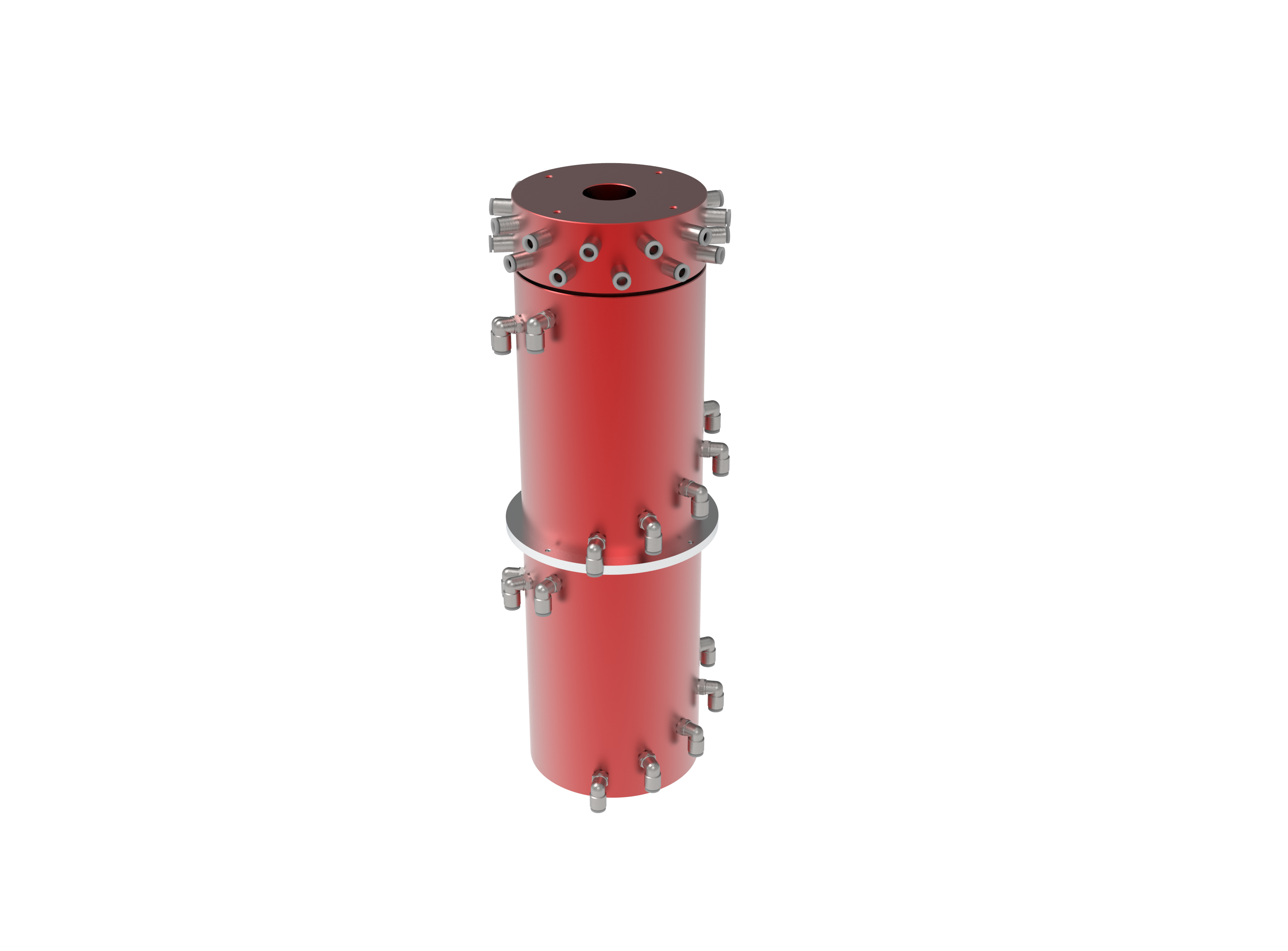

    • SKS-RJM0000 (Multi Type)

      Item Specification
      Pressure Number of Circuit

      12 ~ 24 circuit

      ※ Can be made for oil water

      Operating Speed Max 50 ~ 100 rpm
      Pitting Tap type M5, M6
      Hose Size Max ø4 ~ ø6
      Tunnel Diameter Max ø2 ~ ø4
      Max Pressure

      AIR : Min 7 Bar ~Max 40 Bar

      WATER, OIL : Min 7 Bar ~Max 300 Bar

      Min Torque(N/m) Min 2.5 ~ 3.5
