Technological Innovation of Slip Ring

Bore Slipring




Total 12 Article(s) 1 Page(s)
  • 12
    • zoom in

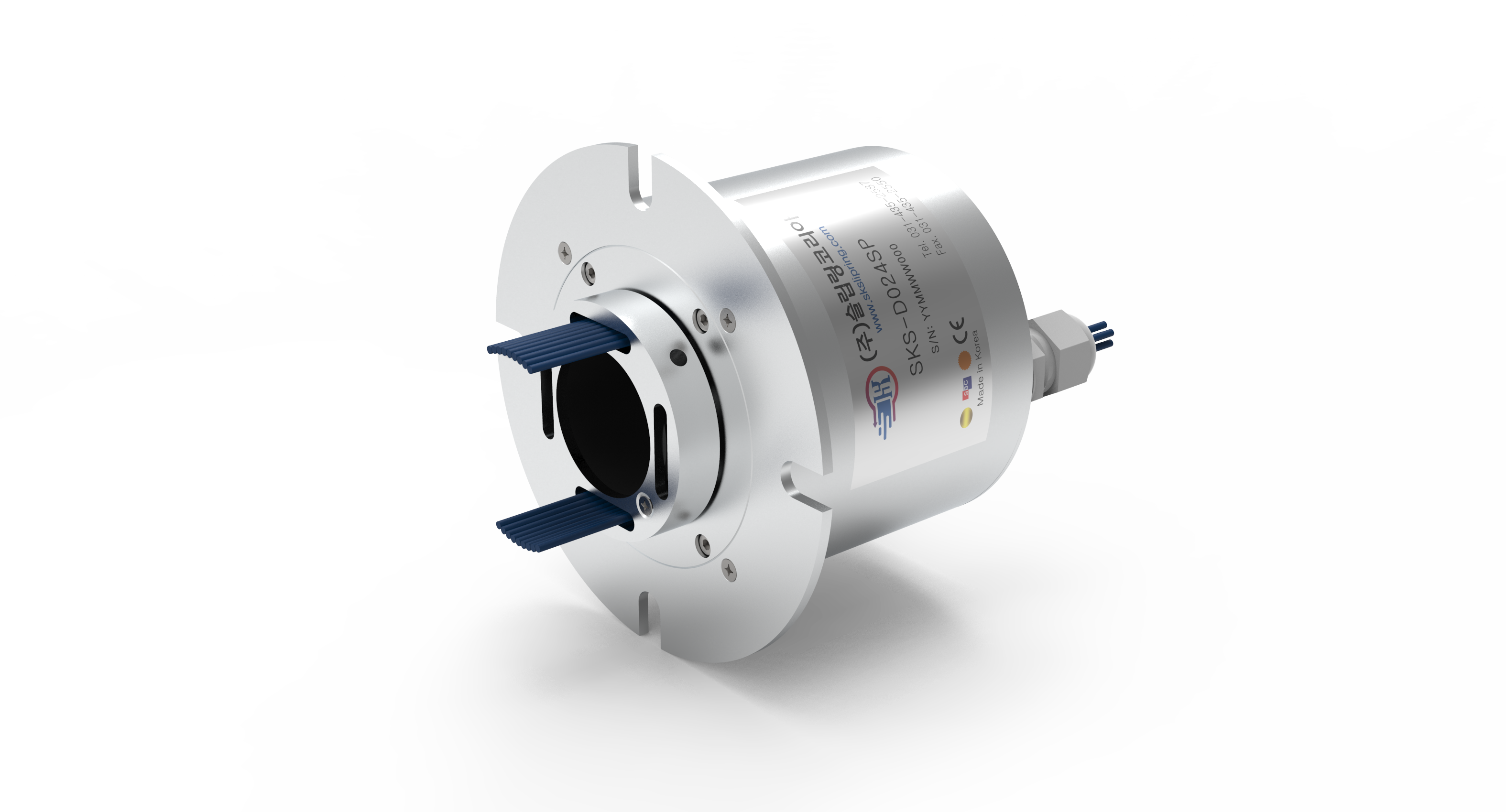

    • SKS-D000SP-A000 (Flange Type)


      Item Specification
      Number of Circuit 12/24/32/48/60/75(Max 100) circuit

      ※ More than 75 channels may have smaller or no thru bore
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 11
    • zoom in

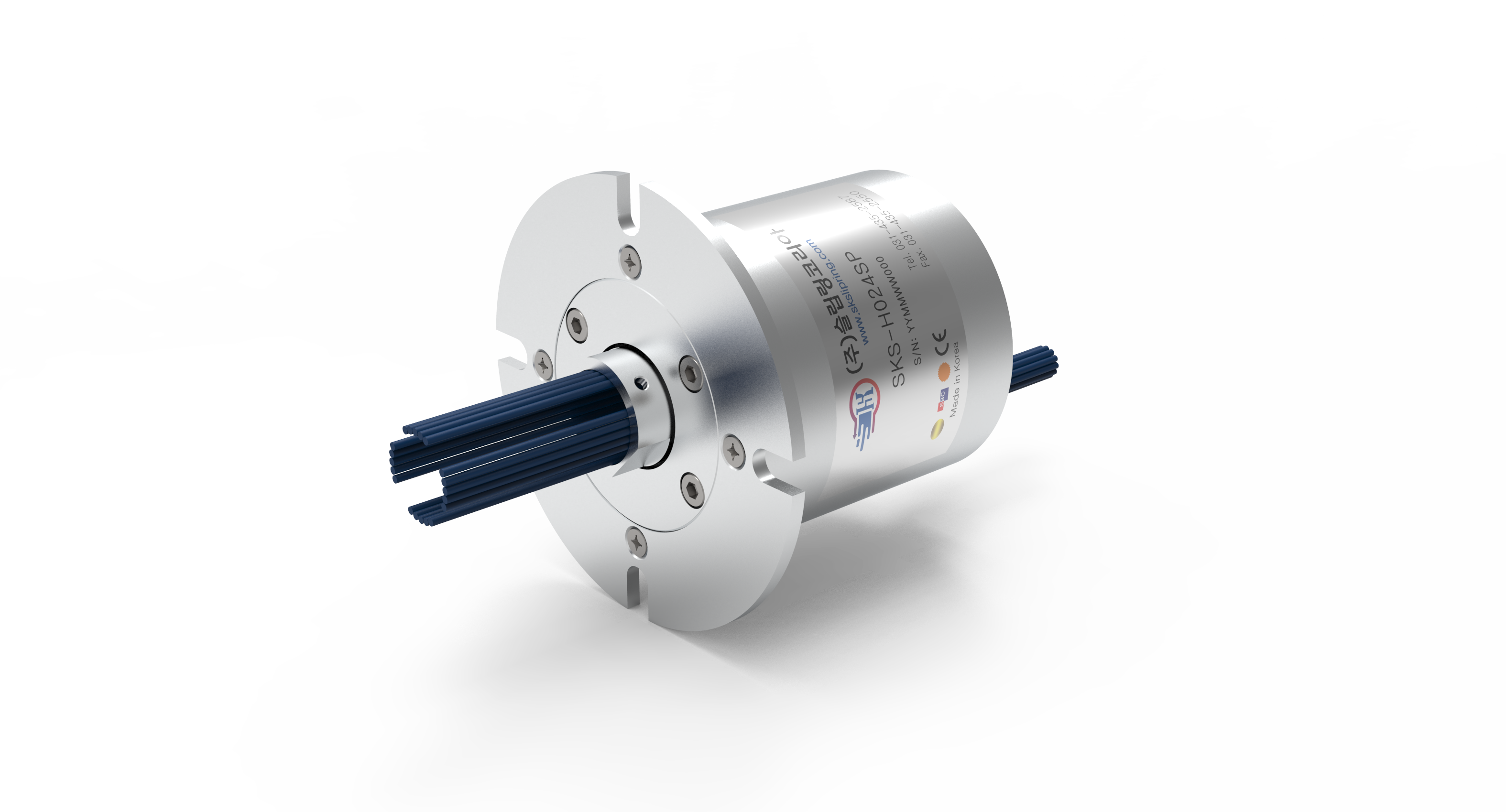

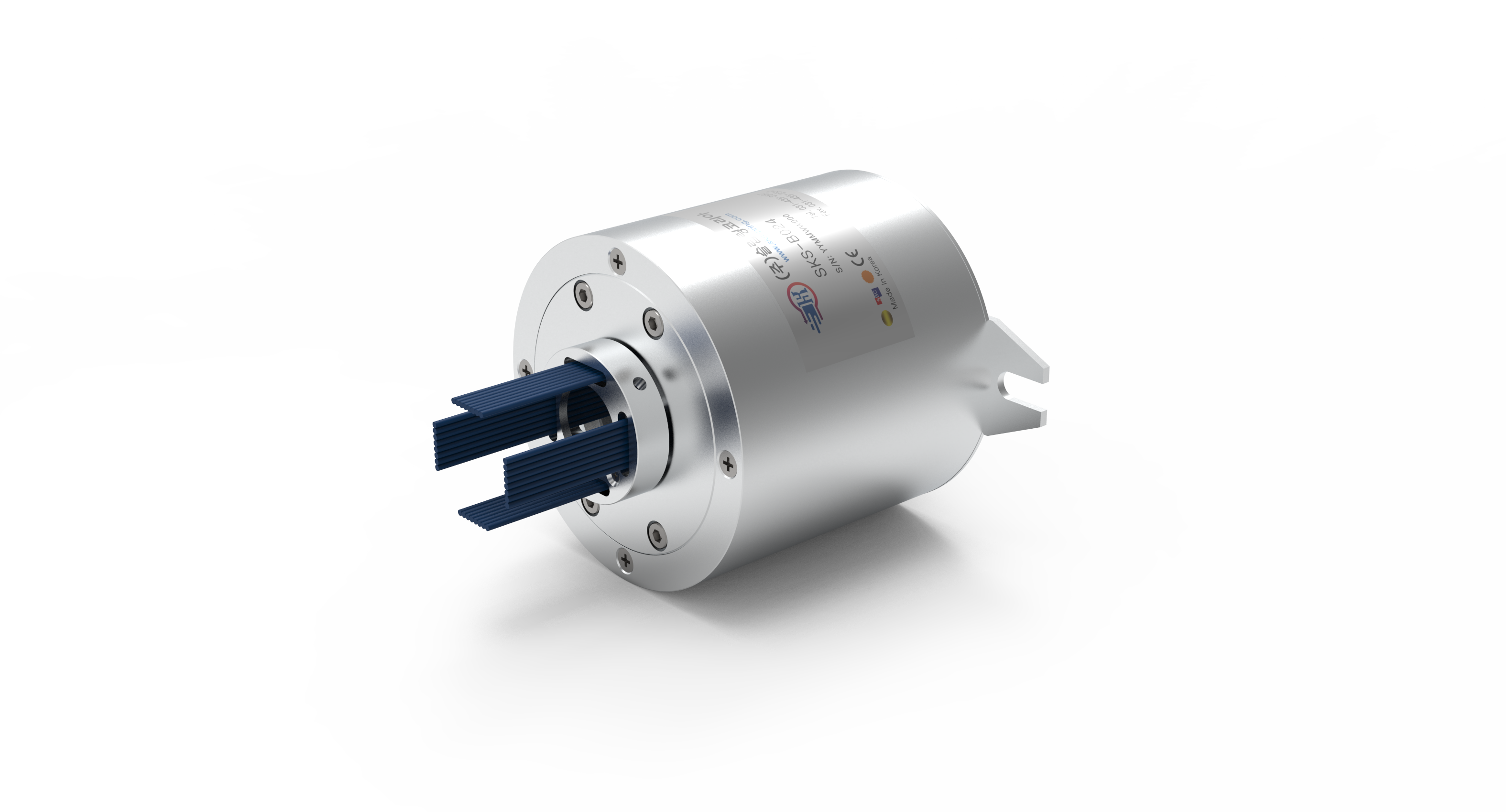

    • SKS-H000SP-A000 (Flange Type)


      Item Specification
      Number of Circuit 12/24/32/48/60 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 10
    • zoom in

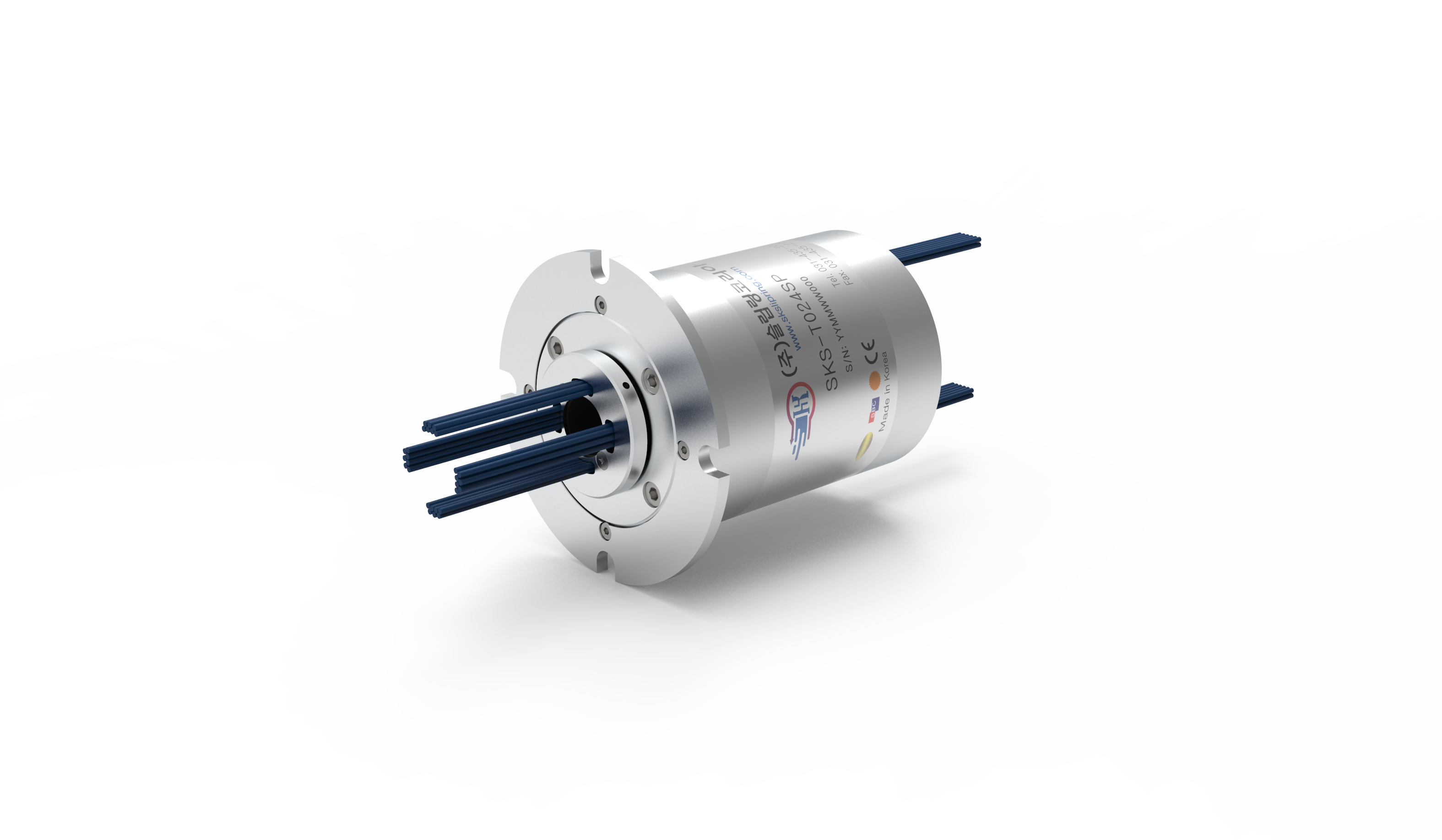

    • SKS-T000SP-A000(Flange Type)


      Item Specification
      Number of Circuit 6/12/18/24 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 9
    • zoom in

    • SKS - T000-A000


      Item Specification
      Number of Circuit 6/12/18/24 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 8
    • zoom in

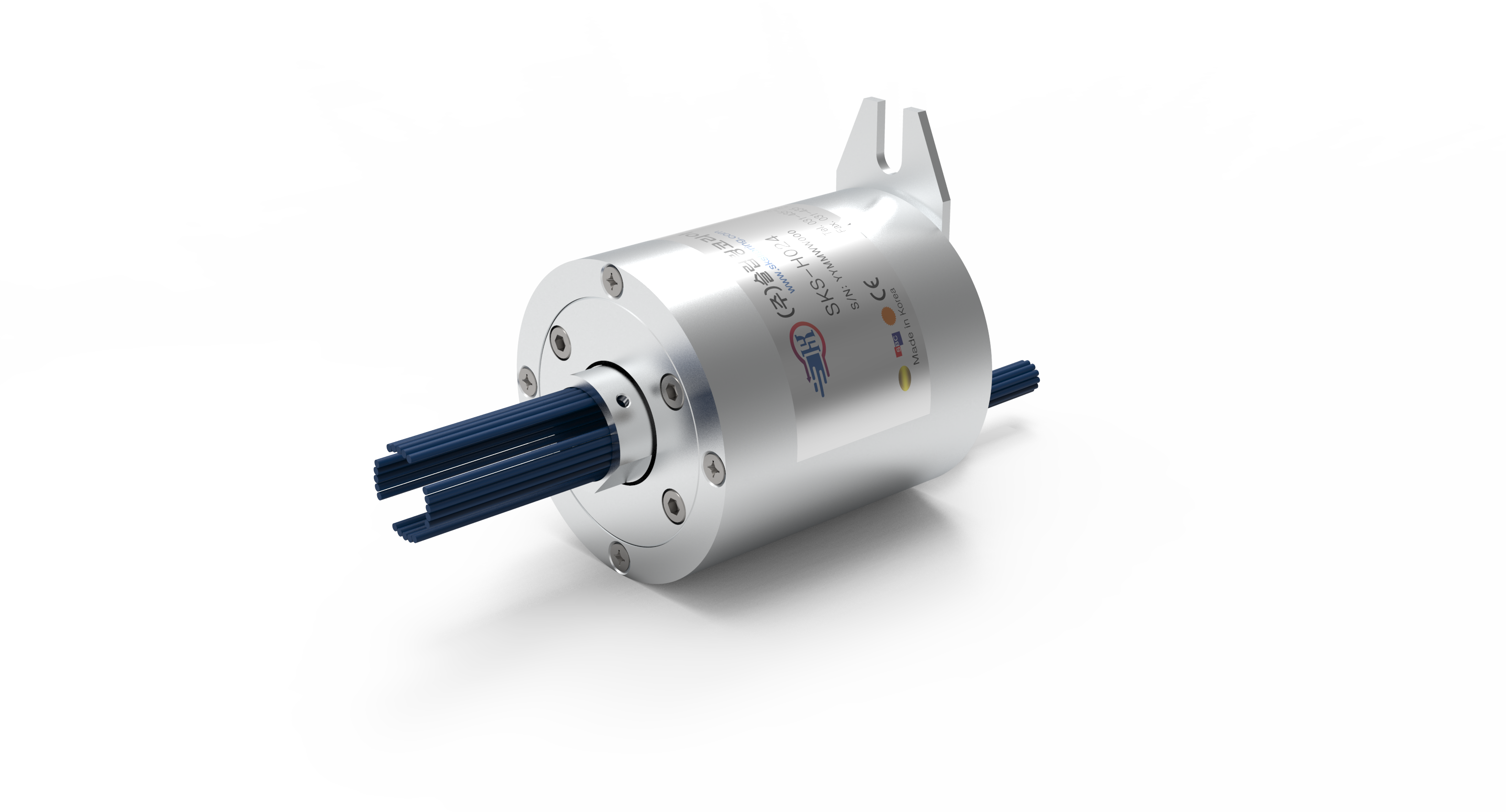

    • SKS - H000-A000


      Item Specification
      Number of Circuit 12/24/32/48/60 circuit
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 7
    • zoom in

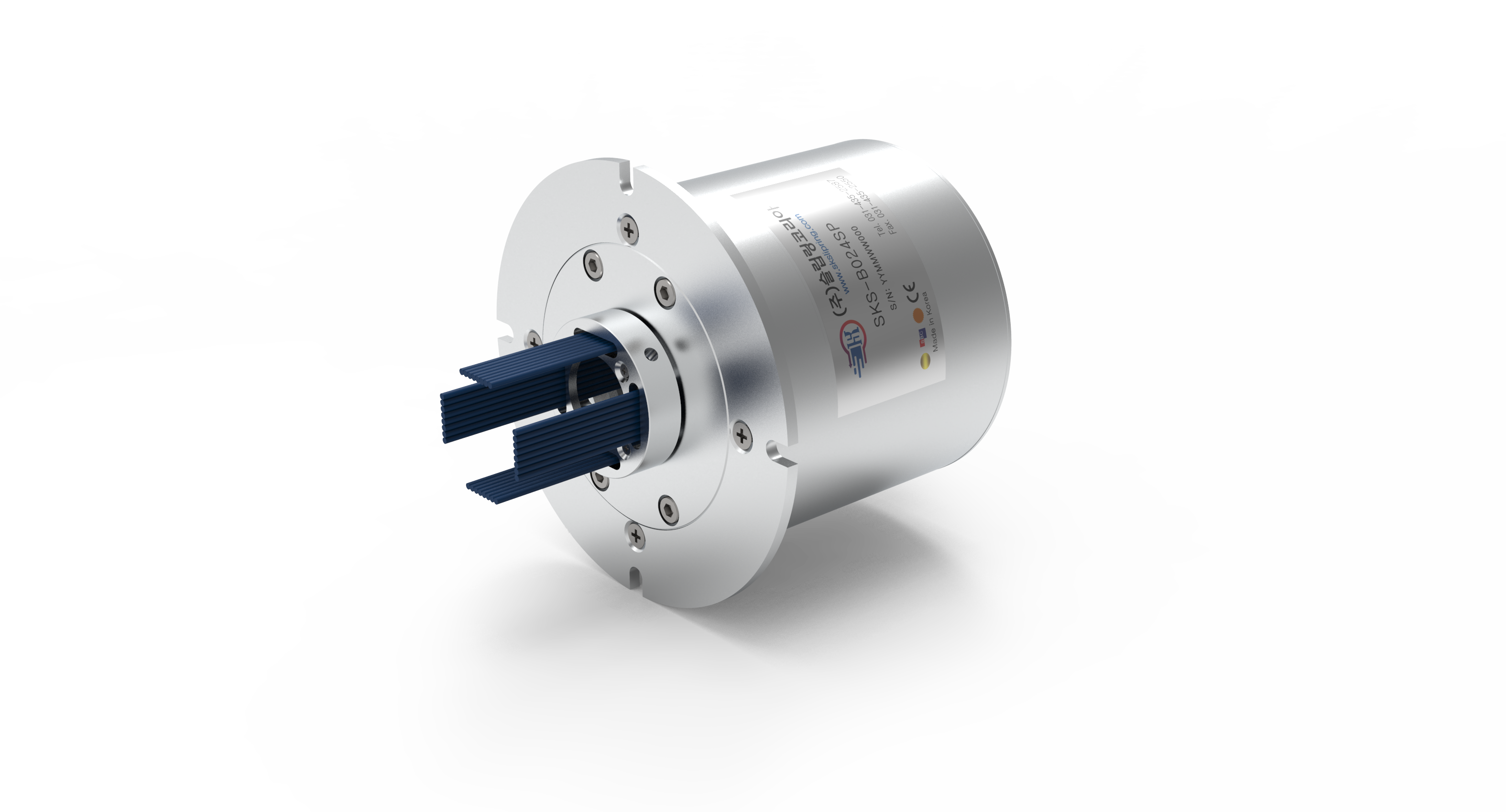

    • Flange Type : SKS - B000SP


      Item Specification
      Number of Circuit 12/24/32/48/60 (Max 160) circuit

      ※ More than 80 channels may have smaller or no thru bore
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 6
    • zoom in

    • SKS - B000-A000


      Item Specification
      Number of Circuit 12/16/24/32/48/60/70/80/100 (~Max 160) circuit

      ※ More than 80 channels may have smaller or no thru bore
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 5
    • zoom in

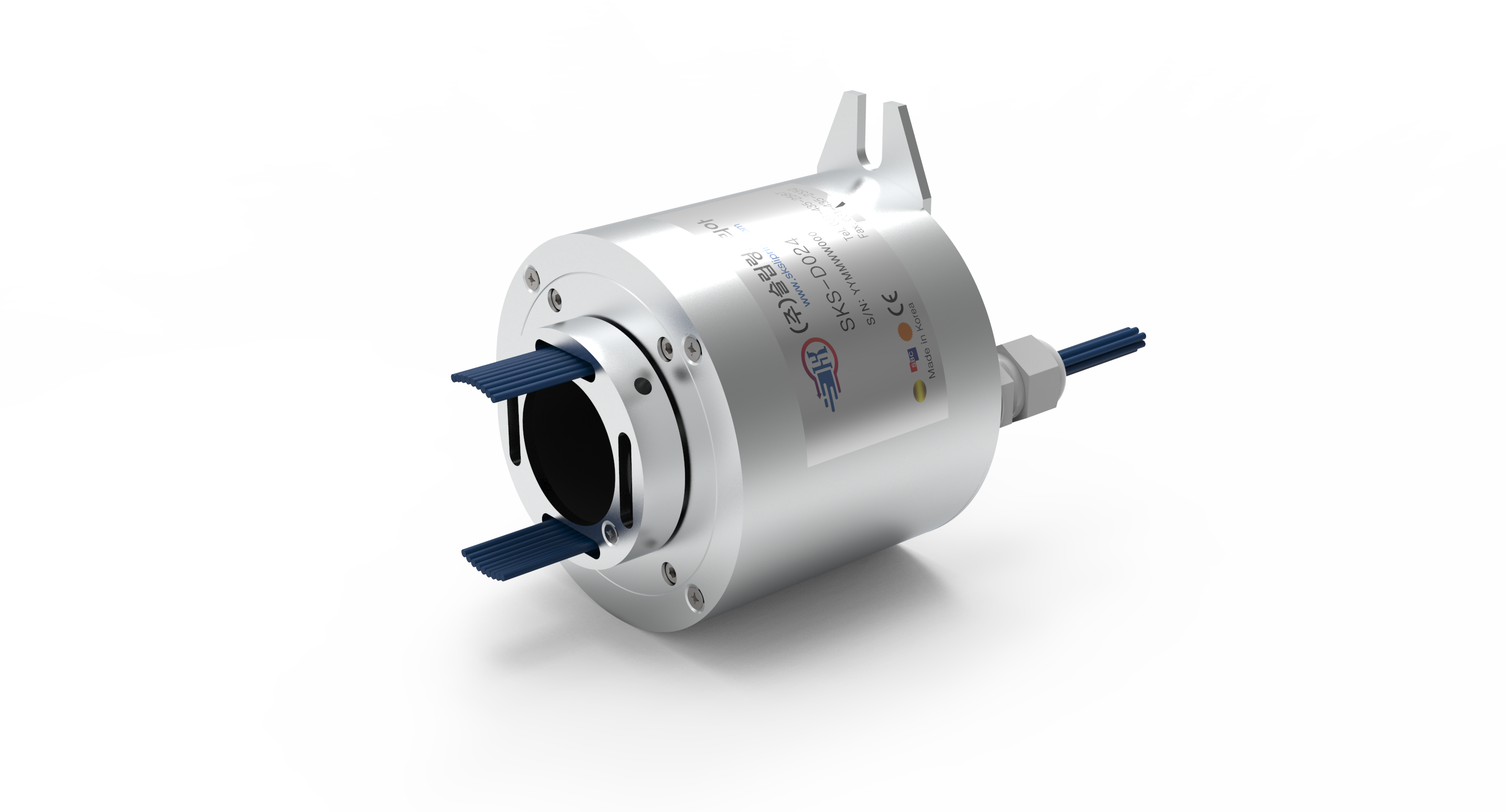

    • SKS - D000-A000


      Item Specification
      Number of Circuit 12/24/32/48/60/75/90/100 circuit

      ※ More than 75 channels may have smaller or no thru bore
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Ethernet, Encoder, Sensor, RS communication, USB(ver 1.1 / ver 2.0 MAX 20MB/s), CClink, Divice Net
  • 4
    • zoom in

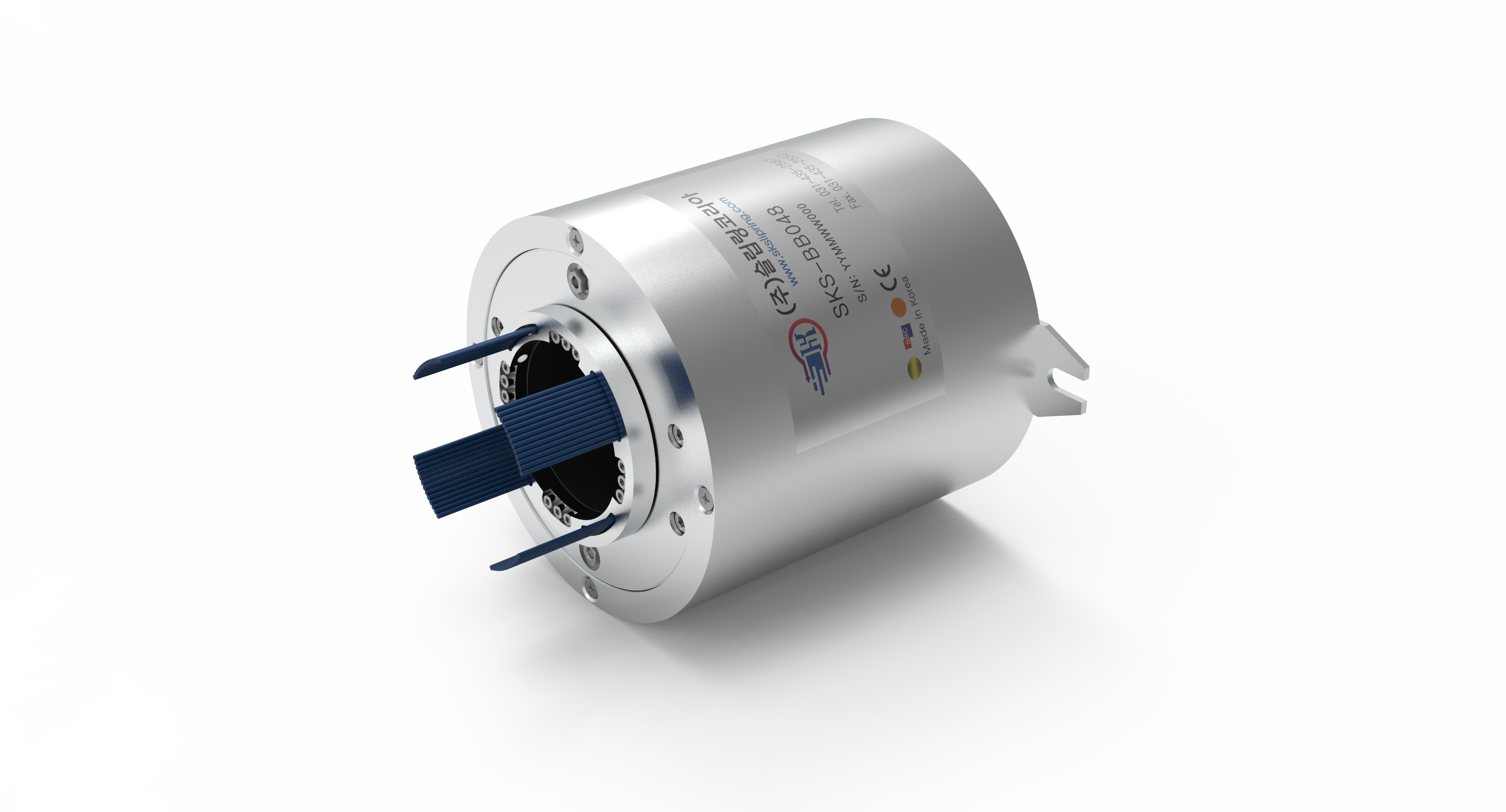

    • SKS - BB000-A000


      Item Specification
      Number of Circuit 12/24/30/48/60 (~Max 200) circuit

      But, it may have smaller or no tru bore depends on number of channels
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Silver Plating / Wire Silver Alloy
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Sensor, RS communication,CClink, Divice Net

      (Ethernet, Encoder,USB Please inquire separately)
  • 3
    • zoom in

    • SKS - DB000-A000


      Item Specification
      Number of Circuit 12/24/30/48/60 (~Max 300) circuit

      But, it may have smaller or no tru bore depends on number of channels
      Operating Speed

      Max 200 rpm

      ※ High speed slipring available
      Vibration

      Non-vibrating

      ※ Vibrating slipring developable
      Lead Lengths

      STATOR 500mm / ROTOR 500mm

      ※ Customized length available
      Voltage

      MAX 210 V/DC, 440 V/AC

      ※Need an inquiry for using over 300V
      Current Rating

      Signal Max 5A /circuit
      Power Max 80A / circuit
      Contact Material Silver Alloy Type
      Plated Type Ring Wire Silver Plating
      Lead Size Type

      Electric Wire - Teflon insulated

      ※ AWG standard
      Noise 100 milliohm Max.Tested 6 VDC, 50 milliamps when running @ 5 rpm
      Communication Type

      Sensor, RS communication,CClink, Divice Net

      (Ethernet, Encoder,USB Please inquire separately)
